HDS Series Spot and Projection Welder

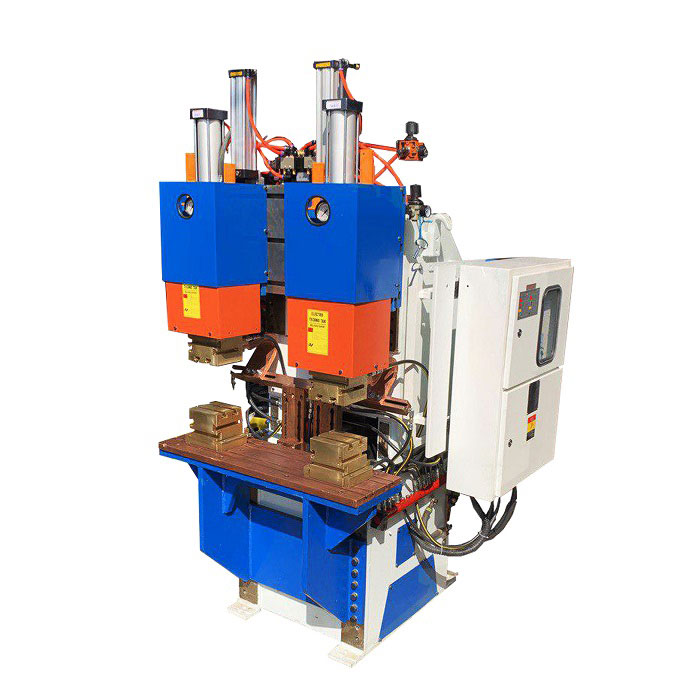

Spot and Projection Welder, Dual Head Model S-5002-D

For Automotive Component WeldingHigh Efficiency, Low Energy Consumption

This series of electro-technotak welding machines is based on a completely indigenous and innovative design, incorporating decades of experience and effort to optimize and improve the quality of this product.

Features of Electro-technotak Stationary Spot Welding Machines HDS Series

• Specially designed for welding thick components or multiple spots simultaneously in large numbers.
• Equipped with a powerful and highly durable transformer (in accordance with standards).
• Has an excellent water circulation path to maintain operational efficiency.
• Rugged, one-piece chassis, fully machined with very high interaction accuracy between the machine consoles in the chassis section.
• Provision and design of the movement of the lower console to adjust the distance between the two consoles in a completely practical way.
• Design of water, electrical, and air inlet paths on the body of this machine, in accordance with the standard for installing facilities in factories.
• In the force application section, the use of hydraulic-pneumatic jacks with suitable power and speed for welding thick components, along with solenoid valves and other pneumatic components sourced from the best brands, provides the customer with a suitable welding quality.
• Use of the best materials in current transfer devices. Use of the best materials with standard alloys and with a high cross-sectional area, all equipped with a water circulation circuit.
• Transfer of current to the machine jaws with minimal voltage drop and losses.
• Equipped with a new generation of current and voltage control timers with the highest options in terms of current stability and welding.
• Capability to install fixtures for welding specific parts.

Options:

• Possibility of installing two welding heads separately
• Possibility of installing a fixture
• Current control timer as a constant current and related accessories such as commonly used
• switches, alarm light, proportional valve, air and water flow switch
• Possibility of designing and manufacturing shaped holders and electrodes for specific parts
• Commonalities of HDS Series Stationary Spot Welding Machines

Standard components and specifications of the machines

• Transformer and machined one-piece structure with fixed consoles
• Digital control panel (CV)
• Force application accessories (including pneumatic jack and solenoid valve)
• Electrical current transfer devices (jaws with brass T-plate or brass worktable, copper arms, holder, and electrode)
• Pedal
• Current feedback from primary and secondary in models with constant current control panel (toroid and CT)

Applications of HDS Series Spot and Projection Welders

• Automotive industry
• Home appliances
• Military industries
• Wire industries
• Riveting and hot forging
• Hard soldering
• And all related industries that require high-speed equipment

Additional Notes

• These machines are recommended for simultaneous multi-spot welding (projection).
• The input power of these machines is two-phase 380 volts with a minimum current of 100 amperes.
